Luces de la columna de señalización LED de 70mm
Serie LR7

Descubre las Luces de Torre de Señalización LED de la Serie LR7 Φ70mm, con LEDs ultrabrillantes, diseño modular y opciones diversas para enfrentar las aplicaciones más exigentes.

  • control de contacto
  • Torre de señal
  • Φ70
  • Continuo encendido
  • intermitente
  • Alarms
  • 90dB
  • Interior (vertical)
  • IP65(vertical)
  • Rojo
  • Ámbar
  • Verde
  • Azul
  • Blanco
  • Luces de la columna de señalización LED de 70mm Serie LR7
  • Lente rediseñada y construcción mejorada del módulo que proporciona una luz brillante y uniforme para visibilidad desde distancias mayores.
  • Módulo de sonido completamente cerrado y rediseñado, mantiene una protección sustancial contra agua y polvo mientras produce un sonido fuerte y omnidireccional. (LR5 12V DC: 80dB LR4 y LR5: 85dB, LR6: 88dB, LR7: 90dB a 1m)
  • Un diseño modular, "Twist and Lock", para personalizar y configurar fácilmente los módulos LED y los módulos de sonido.
  • Una forma elegante y suave y una construcción robusta para rendimiento en ambientes difíciles, con un grado de protección IP65.
  • Voltaje nominal: 24V DC.

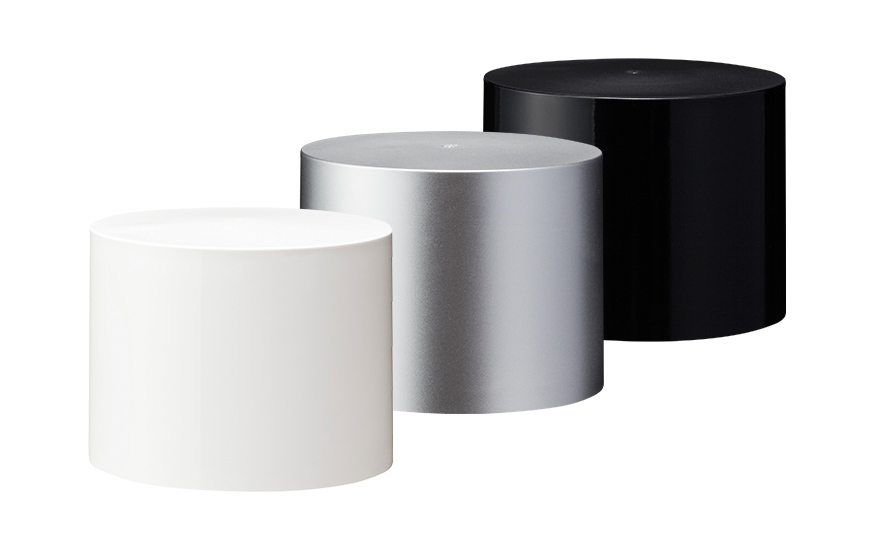

  • Color estándar del cuerpo: Blanco. Cuerpos en plata y negro disponibles solo como componentes.

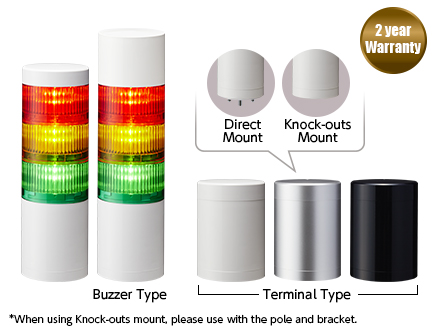

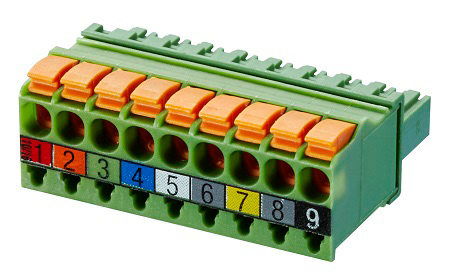

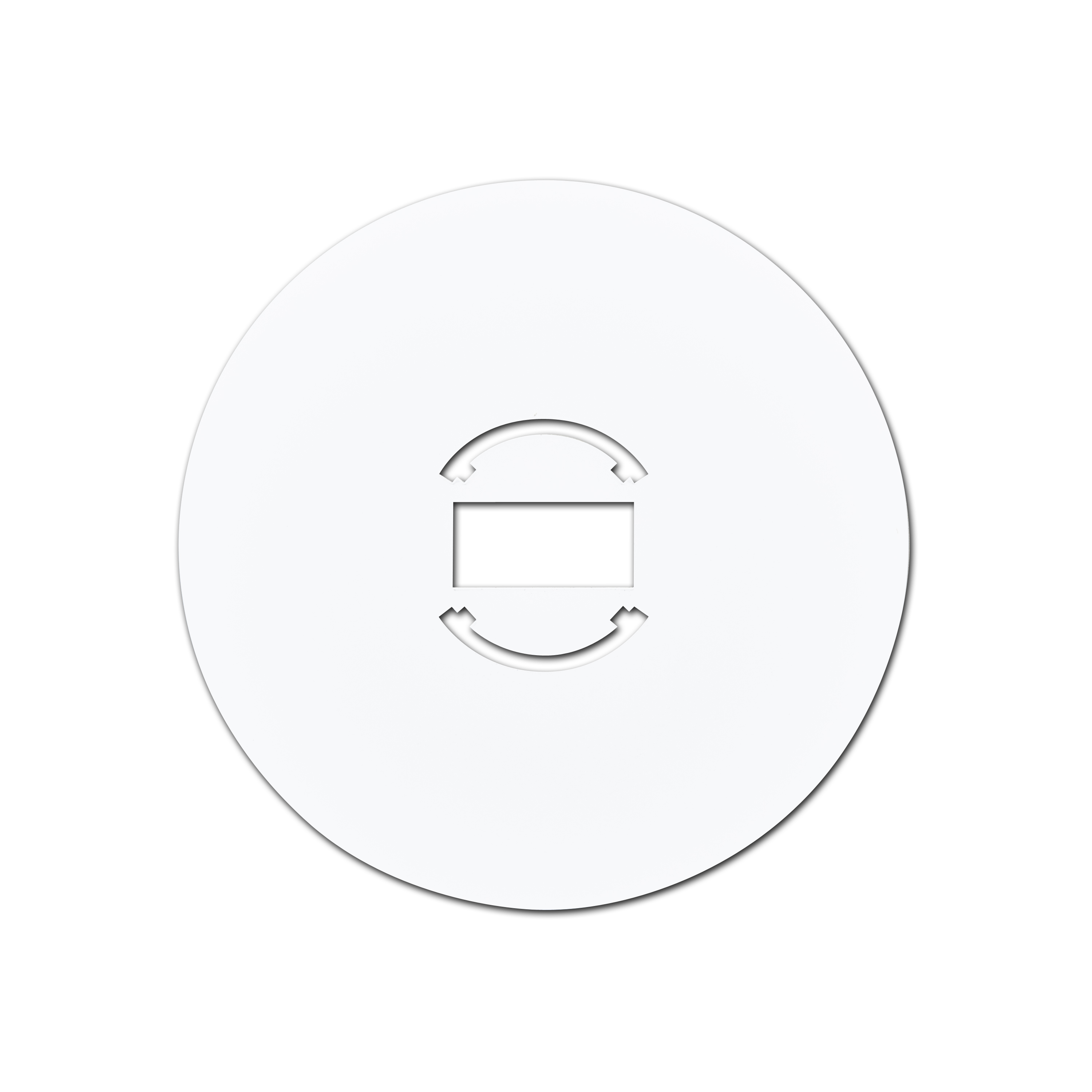

  • Unidad de cuerpo con bloque terminal disponible como componente en blanco, plata o negro (LR7-WT y LR7-KT).

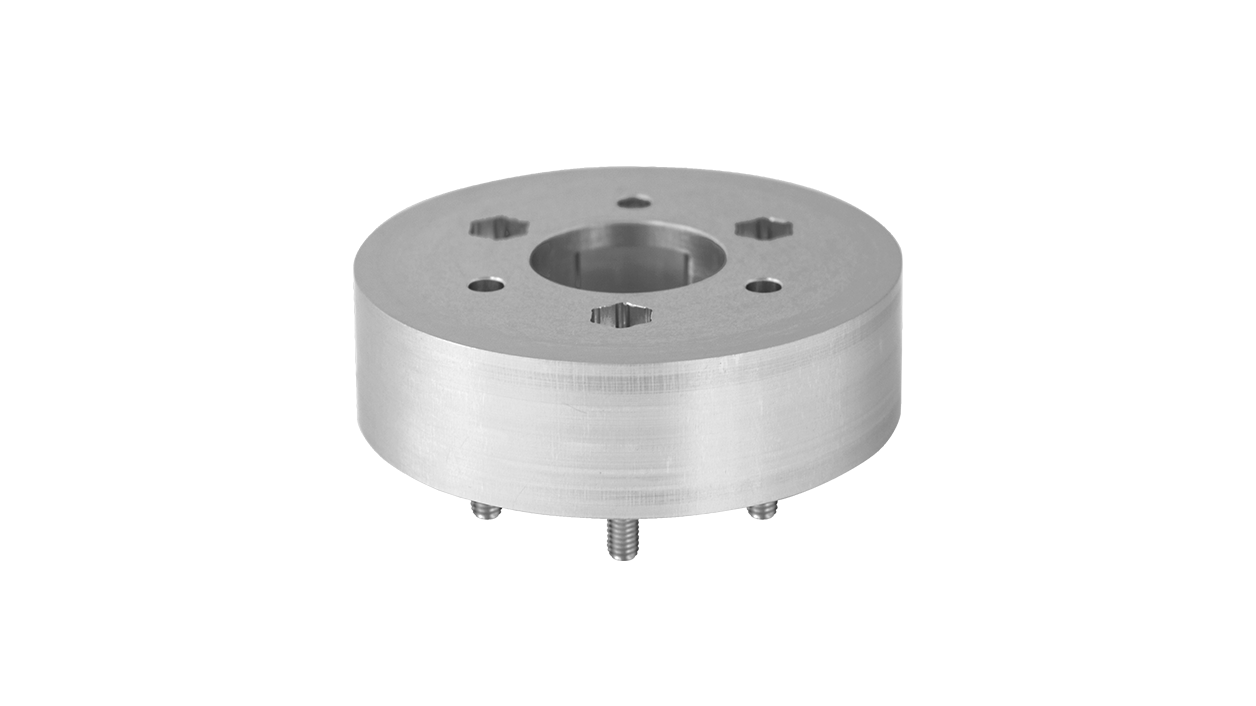

  • Cuatro opciones de montaje: Directo, poste con soporte en L, poste con soporte circular y poste con soporte plegable (solo en blanco).

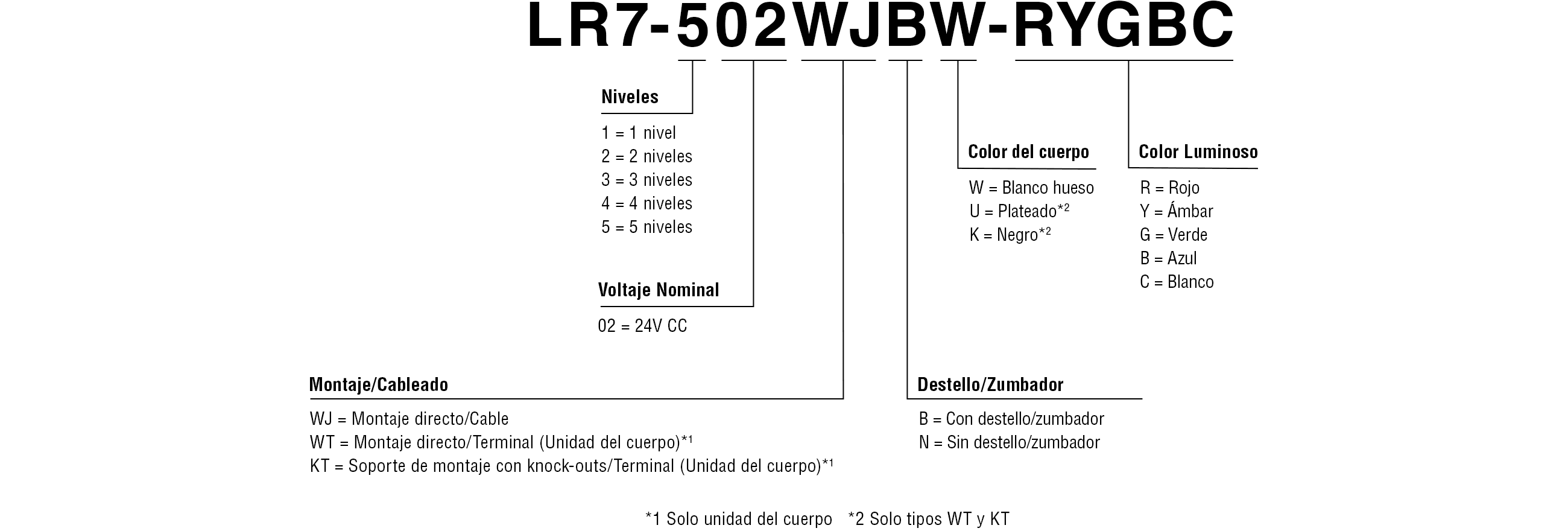

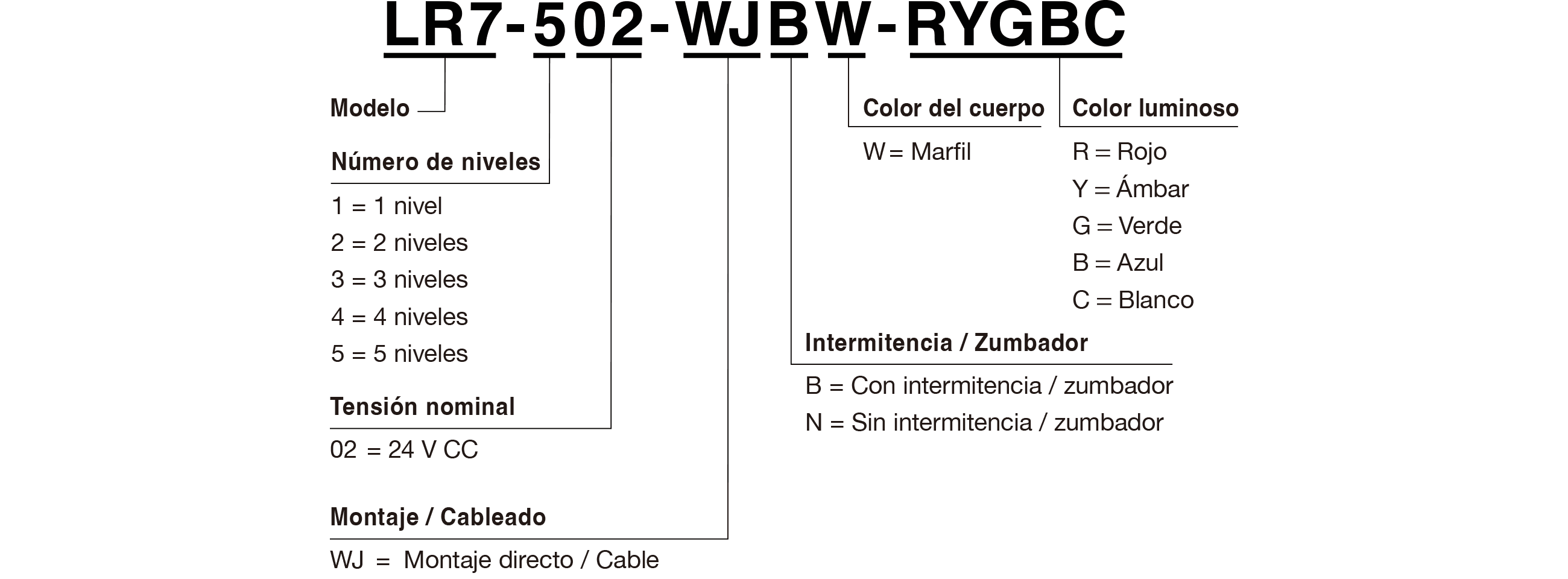

Código de Modelo



Especificaciones

Temperatura Ambiente de Operación -20℃ ~ +50℃
Humedad Ambiente de Operación Menos del 90% (Sin condensación)
Rango de Temperatura de Almacenamiento -30℃ ~ +60℃
Rango de Humedad de Almacenamiento Menos del 90% (Sin condensación)
Ubicación de Montaje Solo en Interiores
Dirección de Montaje Vertical
Grado de Protección*1 IP65(IEC 60529) / NEMA TIPO 4X, 13
Condición Ambiental Posición Vertical
Resistencia de Aislamiento Más de 1MΩ a 500V DC entre la parte viva y la parte metálica sin corriente
Tensión de Soporte 500V AC aplicados durante 1 minuto entre la parte viva y la parte metálica sin corriente sin romper el aislamiento
Frecuencia de Parpadeo 60±2 Destellos Por Minuto
Nivel de Presión Sonora LR7: Típico 90dB
Reducción de Sonido*2 Aprox. -10dB
Condición Ambiental El sonido del zumbador No.4 (barrido) se midió desde la circunferencia total de la unidad de zumbador a 1m
Sonido del Zumbador 4 patrones*2
No.1: Beep Intermitente Rápido / 3378㎐
No.2: Sonido Beep Continuo / 3378㎐
No.3: Hi-Lo Rápido / 2016㎐ & 3012㎐
No.4: Sonido Barrido / 1000Hz - 4032Hz
Salida de Transistor NPN / PNP
Normas de Conformidad
  • UL 508, CSA-C22.2 No.14
  • FCC Parte 15 Subparte B Clase A
  • Directiva RoHS (EN IEC 63000)
  • Directiva EMC (EN 61000-6-4, EN 61000-6-2)
  • KC (KN 61000-6-4, KN 61000-6-2)*3

*1 El tipo LJ es IP54
*2 Dependiente de la configuración del interruptor DIP
*3 Excepto KT, Modelo de Ensamblaje WT

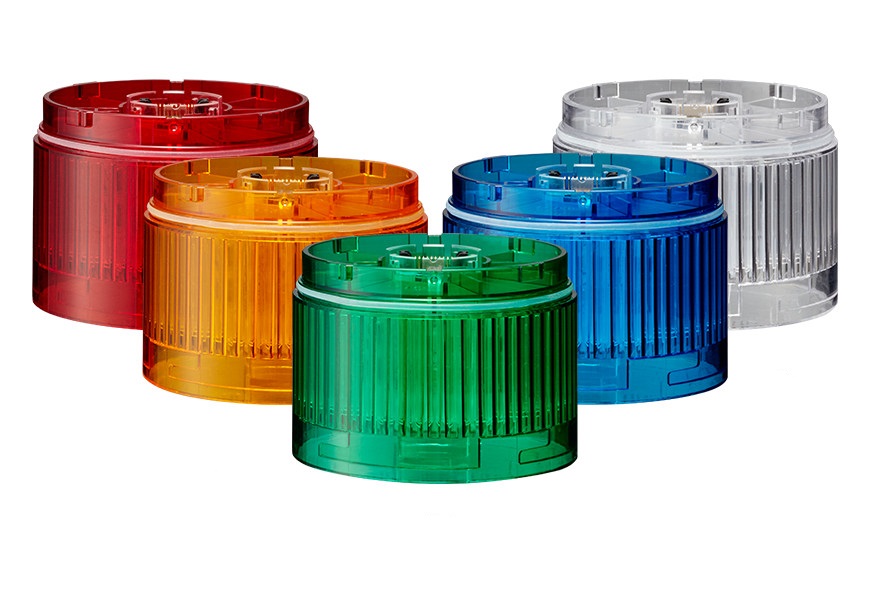

Especificaciones del Módulo LED

Color Rojo Ámbar Verde Azul Blanco
Corriente de cable de señal (por unidad) / Consumo de energía nominal (por unidad) Tip. 40mA / 1W
Máx. 45mA / 1.3W



Especificaciones del Módulo de Zumbador

Corriente de cable de señal (módulo de zumbador) / Consumo de energía nominal (módulo de zumbador) Tip. 40mA / 1W
Máx. 250mA / 1.3W
