Baliza de señalización IO-Link
LR6-IL

Estandariza tu interfaz de señalización. La baliza de señalización de PATLITE Tower se instala y configura de forma sencilla a través de su interfaz IO-Link. IO-Link es una tecnología IO estandarizada (IEC 61131-9); Bus de campo neutro, comunicación punto a punto, interfaz universal.

  • Productos de red
  • IO-Link
  • Torre de señal
  • Φ60
  • Continuo / intermitente
  • Alarms
  • Interior (vertical)
  • IP65(vertical)
  • Rojo
  • Ámbar
  • Verde

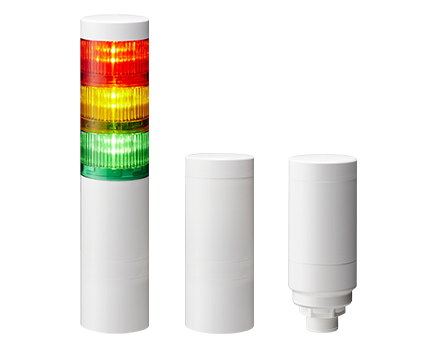

  • Baliza de señalización IO-Link LR6-IL
  • Se integra perfectamente con los maestros de IO-Link. Obtenga más información sobre IO-Link en io-link.com.
  • Conector M12 de 5 pines incorporado para una instalación rápida y fácil.

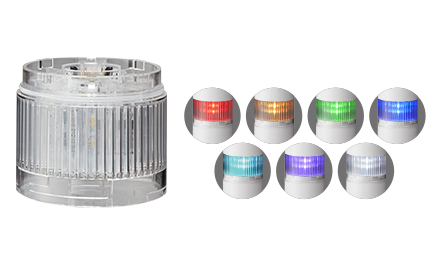

  • Seleccione cualquier combinación de unidades de LED de colores sólidos, multicolor y transparente.
  • Las alarmas sonoras con función de destello incorporado incorporado y sistema de adquisición de datos inalámbrico están disponibles como opciones.

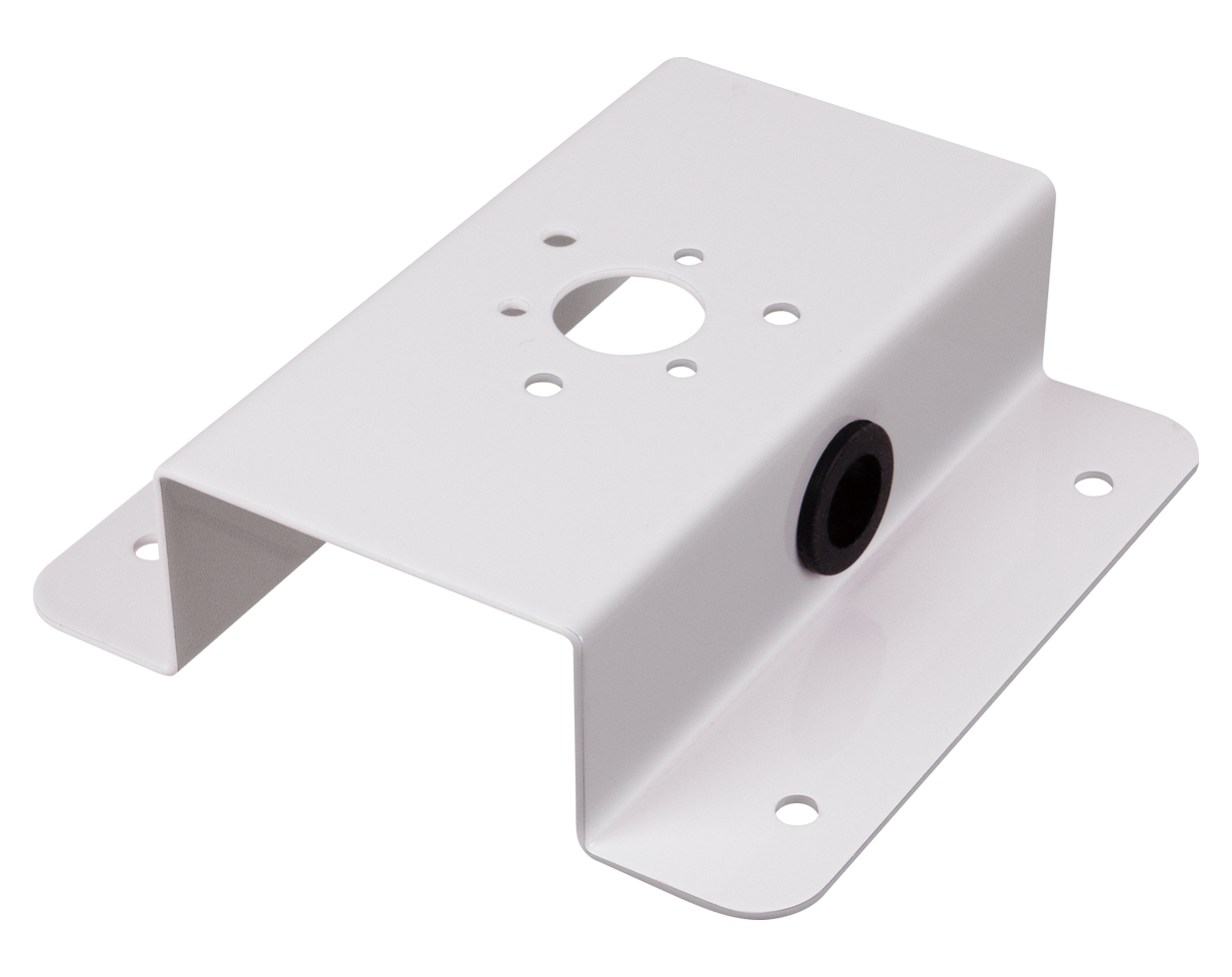

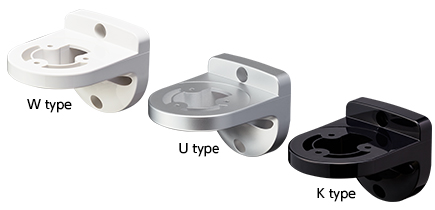

  • La construcción modular de la baliza facilita la configuración de las unidades LED y las piezas opcionales.
  • Haga clic aquí para obtener una guía de conexión IO-Link con la "Unidad maestra IO-Link serie NX de OMRON Corporation"
    (Póngase en contacto con OMRON Corporation para consultas sobre este documento)



Especificaciones

Código modelo Modelo premontado
(montaje directo)
LR6-3ILWMNW-RYG

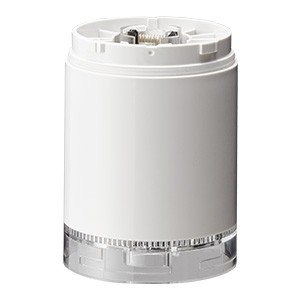

Unidad de cuerpo
(montaje directo)
LR6-ILWMNW
Unidad de cuerpo

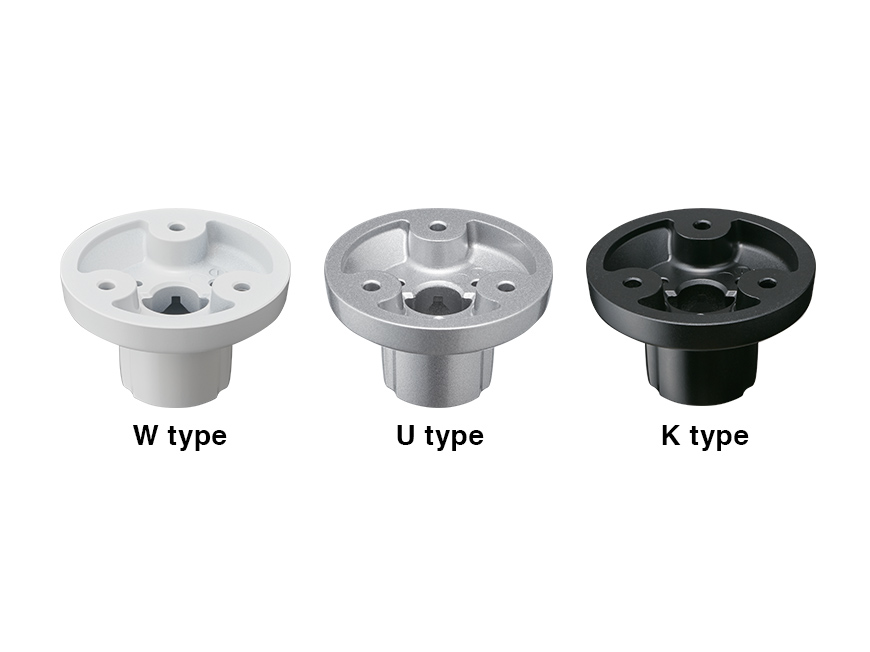

(1/2 "Tubo NPT o montaje directo)
LR6-ILWCNW
Tamaño 60mm
Módulos Máx. 5 módulos LED y un Zumbador

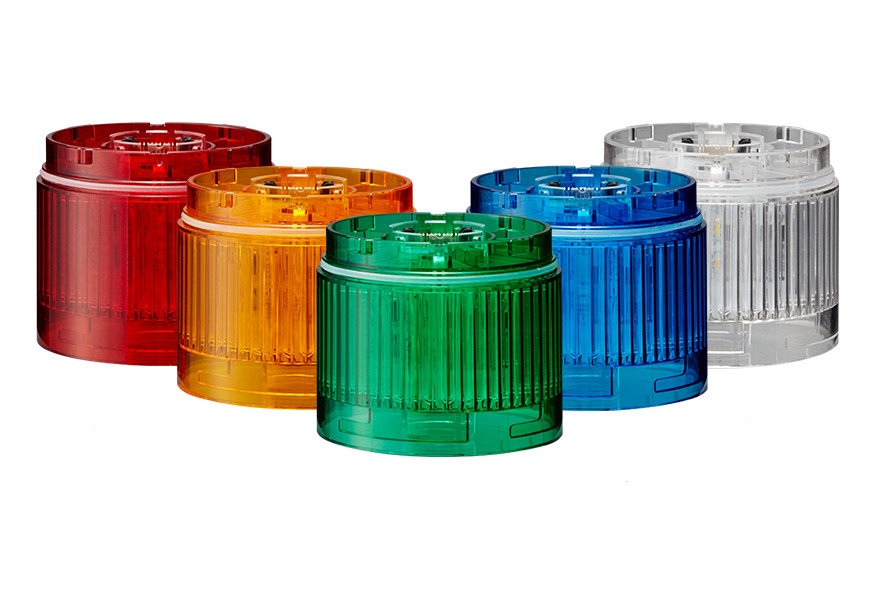

Unidades LED Rojo / Ámbar / Verde
(Es posible agregar o cambiar unidades LED)
Se vende por separado Se vende por separado
Control de luz Continuo / intermitente
Zumbador Presión acústica Tip 84dB (Usar LR6-BW)
Zumbador Selección de sonido 4 tipos (Seleccionable) (Usar LR6-BW)
Grado de Protección IP65 (NEMA typ. 4x, 13)
Conexión Conector M12 5 pines
