Indicadores LED IO-Link

Los indicadores LED IO-Link se conectan de forma sencilla a los maestros de IO-Link y ofrecen LEDs multicolor con un sensor táctil y una carcasa resistente.

  • Productos de red
  • IO-Link
  • Φ56
  • Balizas de señales
  • Continuo / intermitente
  • Alarms
  • 88dB
  • Interior (vertical)
  • IP65
  • Multicolor (7 colores)

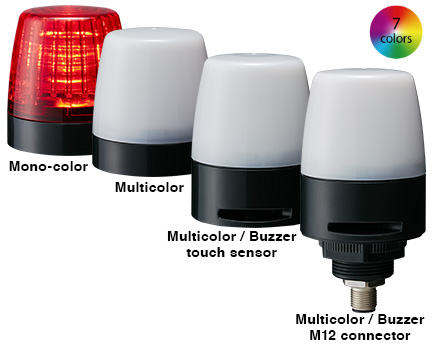

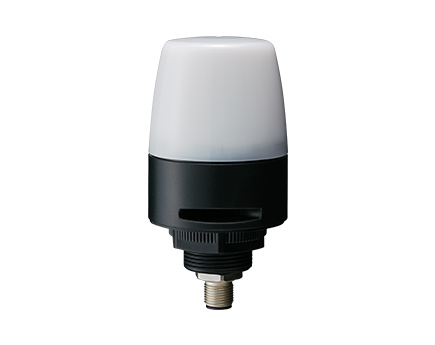

  • Indicadores LED IO-Link NE-IL
  • El sensor táctil capacitivo permite confirmaciones de estado en tiempo real
  • Equipado con una función de entrada digital/análoga para conectar dispositivos no compatibles con IO-Link. El NE-IL actúa como un centro de E/S, capaz de enviar datos de sensores al maestro IO-Link
  • Cuenta con una conexión M12 para instalaciones rápidas y fáciles
  • Los dispositivos indicadores de estado conectados a un maestro IO-Link pueden controlarse colectivamente
  • La notificación en tiempo real de anomalías en el equipo permite a los operadores realizar mantenimiento de inmediato, reduciendo cuellos de botella y tiempos de inactividad
  • Hasta 7 colores pueden emitirse para indicar diferentes condiciones del equipo
  • Alto grado de protección para operación en entornos difíciles
  • La lente esmerilada muestra una luz distribuida uniformemente para una indicación inequívoca
  • Haz clic aquí para una guía de conexión IO-Link con la unidad maestra IO-Link de la serie NX de OMRON Corporation
    (Por favor, contacta a OMRON Corporation para consultas sobre este documento)

Especificaciones del modelo

Con buzzer
Con sensor táctil
Con buzzer y sensor táctil
Con buzzer, sensor táctil,
y entrada digital/análoga
Tamaño φ56mm
Voltaje nominal 24V DC
Ubicación de montaje/
Dirección de montaje
Interior, Vertical
Grado de protección IP65 NEMA TYPE 4X, 13
Color LED Multicolor (Rojo, Ámbar, Verde, Azul, Blanco, Púrpura, Cian)
Modos de la unidad LED Continuo / Intermitente
Presión sonora Típ. 88 dB
[8 tipos de sonido (Seleccionable)]
Típ. 88 dB
[8 tipos de sonido (Seleccionable)]
Normas de conformidad ●Directiva EMC (EN 61000-6-4, EN 61000-6-2) ●Directiva RoHS (EN 50581)
●UL 508, CSA-C22.2 No. 14 ● FCC Parte 15 Subparte B Clase A
● KC (KN 61000-6-4, KN 61000-6-2)
Conexión Conector M12 5 pines código A Conector M12 8 pines código A

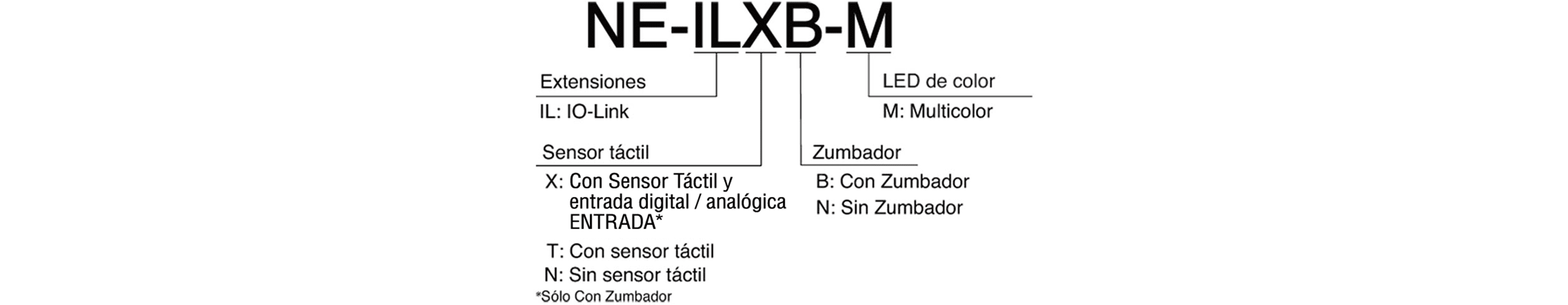

Model Code
