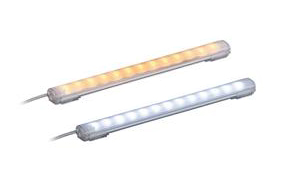

Barra de luces

Descubre la fiabilidad superior con nuestra Light Bar, conforme a IP69K, con iluminación LED uniforme ultra-brillante, disponible en seis tamaños. Resistente al agua para una durabilidad superior.

  • Control de poder
  • 100/200/300/600/900
  • "Continuo encendido
  • Iluminación LED
  • Interior
  • IP66/IP67/IP69K
  • Blanco
  • Ámbar
  • Barra de luces  CLA-A

Características del Producto

La barra de luces LED Serie CLA produce una iluminación brillante y uniforme en un recinto IP-69K para aplicaciones de lavado de alta temperatura en aplicaciones alimentarias y farmacéuticas, así como iluminación para paneles de control y estaciones de trabajo.

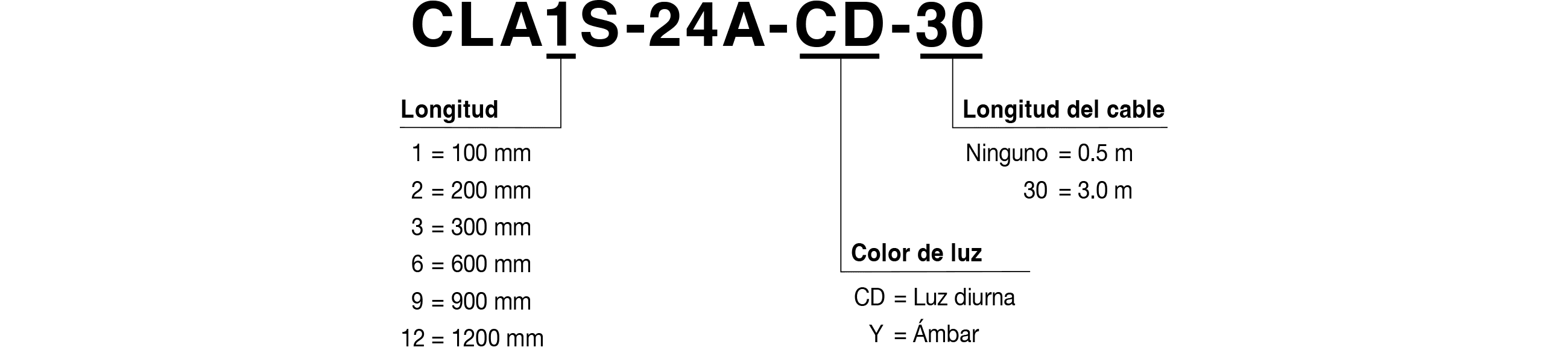

Las 4 diferentes opciones de montaje y 6 longitudes diferentes de 100 mm a 1200 mm hacen de este producto una consideración ideal para reemplazo de tubos fluorescentes también.



DIMENSIONES Dimensiones totales sin soportes
・ 124mm x 30mm x 19.5mm
・ 224mm x 30mm x 19.5mm
・ 324mm x 30mm x 19.5mm
・ 624mm x 30mm x 19.5mm
・ 924mm x 30mm x 19.5mm
・ 1224mm x 30mm x 19.5mm
FUNCIONES Solo Continuo
MONTAJE ・ Soporte de montaje atornillado de ajuste rápido
・ Soporte de montaje magnético de ajuste rápido
・ Soportes montados en el costado
・ Interior, en cualquier dirección
ESTILO DEL CUERPO ・ Caja de policarbonato
・ Preensamblado, precableado
COLOR DEL CUERPO Cuerpo: Blanco translúcido
FUENTE DE LUZ ・ Chip LED de alta intensidad, Luz del día
・ Chip LED de alta intensidad, Ámbar (solo tamaños de 324 mm)
・ Vida útil promedio (especificada cuando la luminosidad disminuye al 70%): 40,000 horas
MATERIAL DE LA LENTE Resina de policarbonato blanco translúcido
・ UL
・ RoHS
・ IP67
・ IP69K
