Sistema inalámbrico de adquisición de datos Receptor WD PRO
WDR-LE-Z2-PRO

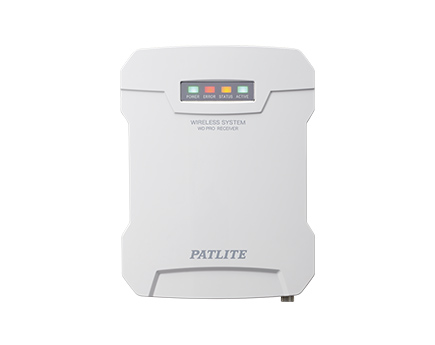

El WDR-LE-Z2-PRO (receptor WD PRO) es un receptor que forma parte del sistema inalámbrico de adquisición de datos de PATLITE. Este sistema de adquisición de datos puede obtener, en tiempo real y de forma inalámbrica, los datos de los estados de la señalización (y zumbador) de las balizas, y pueden enviarse a un archivo CSV y analizarse para mejorar la OEE y la productividad. El receptor WD PRO es una versión mejorada de los receptores actuales y admite una amplia variedad de protocolos, lo que permite una fácil comunicación con el sistema de control y otros dispositivos en los puestos de trabajo.

  • Productos inalámbricos
  • Inalámbrico (Zigbee)
  • Interior (horizontal, pared, techo)
  • IP20
  • Sistema inalámbrico de adquisición de datos Receptor WD PRO WDR-LE-Z2-PRO
  • Capacidad PoE
     El receptor WDR PRO puede energizarse a la corriente eléctrica y acceder a los datos a través de un solo cable Ethernet para que la distancia de cableado y los costos se puedan minimizar.
  • Soporte de montaje
     La unidad principal del receptor WD PRO se acopla sobre un soporte de montaje en superficie.
     Esto permite un fácil ensamblaje, así como una versatilidad en los ángulos de montaje.
  • Diagnóstico de conexión inalámbrica
     El receptor WD PRO es capaz de rastrear la calidad de la conexión inalámbrica entre el receptor y los transmisores conectados.
     Se pueden captar hasta 72 horas de resultados de diagnóstico, tomados a intervalos de 10 minutos.
     Hay 5 niveles de resultados de diagnóstico, lo que permite a los usuarios identificar cuándo es necesario modificar el entorno o topología de la instalación.
     Estos datos recopilados se pueden ver fácilmente en su ordenador o terminal a través del navegador en la página de configuración.
  • Pantalla Andon
     Los estados de luces y Alertas audibles en tiempo real de todas las Torretas de señalización conectadas se pueden mostrar en la pantalla de su computadora. Esto se puede hacer simultáneamente con la recopilación de datos CSV.
  • Funciones de colaboración
     Además del protocolo SOCKET, el receptor WD PRO tiene funciones colaborativas usando comunicación Modbus/TCP y base de datos SQL.
     Estos protocolos simplifican la comunicación y adquisición de datos entre distintos dispositivos de la red.



Especificaciones

Modelo Sistema inalámbrico de adquisición de datos
Receptor WD PRO
WDR-LE-Z2-PRO
Sistema inalámbrico de adquisición de datos
Receptor WD PRO〈Lite version〉
WDR-LE-Z2-PRO-L
Fuente de alimentación de entrada 24V DC / USB / PoE
Método de montaje Horizontal / Pared / Techo
Método de comunicación de red Ethernet de par trenzado 10BASE-T / cable 100BASE-TX- CAT5 / 1000BASE-T- también CAT5
Número de transmisor Máximo 30 unidades
Rango de comunicación Línea de visión, aproximadamente 30 m * 1
Configuración de la dirección IP Configuración manual / configuración automática de DHCP
Temperatura ambiente de funcionamiento -10℃ ~ +50℃ (accesorio adaptador de CA: 0℃ ~ +40℃)
Grado de protección IP20
Diagnóstico de conexión inalámbrica Diagnóstico en tiempo real / diagnóstico a largo plazo (1 ~ 72 horas)
Configuraciones inalámbricas del transmisor Navegador de configuración incorporado / software WDS-WIN01 Utilice WDS-WIN01
Comunicación del sistema host ・Archivo CSV * Use WDS-WIN01・Comunicación SOCKET
 (protocolo WDR)・Comunicación SOCKET
 (protocolo WDR PRO)・Enlace de base de datos (MySQL)
 Comunicación.・Comunicación Modbus / TCP
WD-PRO ・Archivo CSV * Use WDS-WIN01・ Comunicación SOCKET
 (protocolo WDR)
Patalla Andon ×

※1 Debido a las características de las ondas de radio, este valor es solo un punto de referencia.
